Timber frame construction primarily offers unlimited possibilities in wall cross-section combinations, resulting in significant variations in price, insulation, and even soundproofing. We have selected three cross-sections that represent a balanced option between price and quality.

We would like to emphasize that in the construction of our homes, we do not use polystyrene or spray polyurethane foam, which allows us to reduce costs. Furthermore, overly airtight sealing of external partitions hinders the building's breathability and may lead to unwanted moisture, as not everyone uses heat recovery ventilation or proper building ventilation.

One of the undeniable advantages of timber frame and energy-efficient construction is its rapid realization time, which takes only a few months. Contrary to "our native" stereotypes, this construction is very durable and long-lasting. Many houses that have survived a hundred or more years are a testament to the effectiveness of this technology worldwide. We invite you to our knowledge base, and we will be happy to answer any questions.

Cross-Sections we have

© 2024 AS Passive Houses

POLENGSVKCZE

Roof cross-sections

Wall cross-section

Premium

External Wall U=0,119 W/m²K

Thermal Protection

U = 0,12 W/m²K

GEG 2020 Bestand: U<0,24 W/m²K

thermalProtection
scale_img

Excellent

Insufficient

Moisture Resistance

No condensation

moistureResistance
scale_img

Excellent

Insufficient

Heat Protection

Temperature amplitude damping: 94

Phase shift: 18,0h

Internal heat capacity: 48 kJ/m²K

heatProtection
scale_img

Excellent

Insufficient

Recommended
premium
comfort
standard
Details
Recommended
premium
comfort
standard

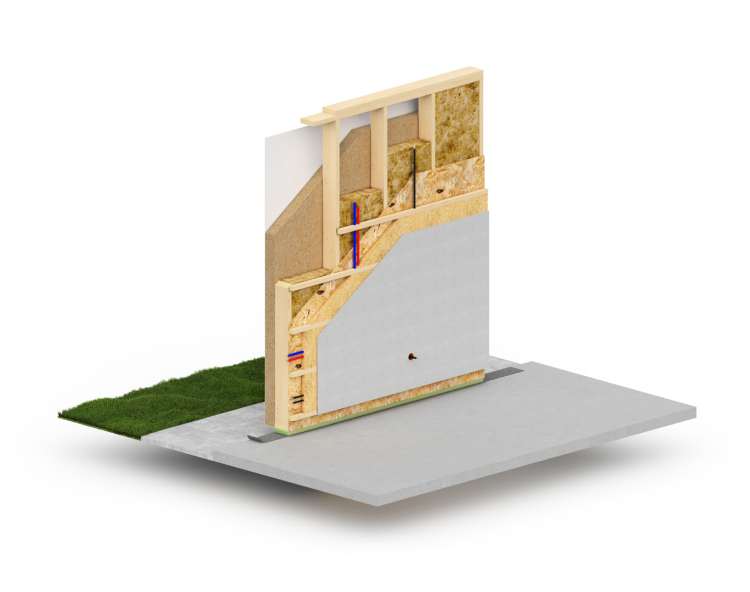

premium
1.GK Board 12.5 mm
2.Installation wall + STEICOflex 40 mm
3.OSB/3 Board 15 mm
4.STEICOzell insulation 170 mm
5.Construction wall SÖDRA 45x170 mm
6.STEICOprotect 120 mm
7.Adhesive + Mesh
ANNUAL MAINTENANCE COST OF A 150M² HOUSE, HEATED WITH ELECTRICITY, DOES NOT EXCEED 1300 PLN

© 2024 AS Passive Houses

POLENGSVKCZE

Ceiling cross-sections

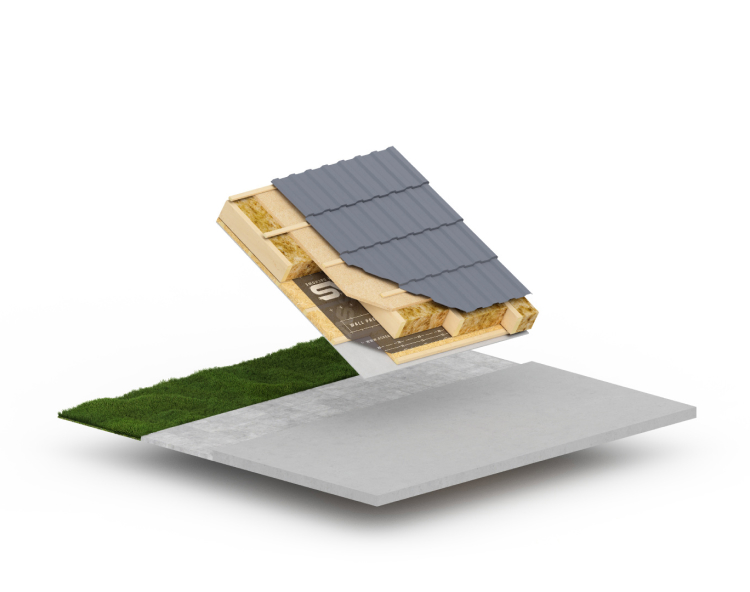

Roof cross-section

Rafter 20cm

External Wall U=0,150 W/m²K

Thermal Protection

U = 0,15 W/m²K

GEG 2020 Bestand: U<0,24 W/m²K

thermalProtection
scale_img

Excellent

Insufficient

Moisture Resistance

No condensation

moistureResistance
scale_img

Excellent

Insufficient

Heat Protection

Temperature amplitude damping: 15

Phase shift: 12,3h

Internal heat capacity: 28 kJ/m²K

heatProtection
scale_img

Excellent

Insufficient

200
240
Details
200
240
200
1.GK Board 12.5 mm
2.Bar 45x45 mm / 40 cm
3.STEICOflex Insulation 40 mm
4.Vapor Barrier
5.STEICOzell Insulation 200 mm
6.Rafter KVH 60x200 mm
7.STEICOuniversal Board 35 mm
8.Conuter Batten 25x48 mm

© 2024 AS Passive Houses

POLENGSVKCZE

Roof cross-sections

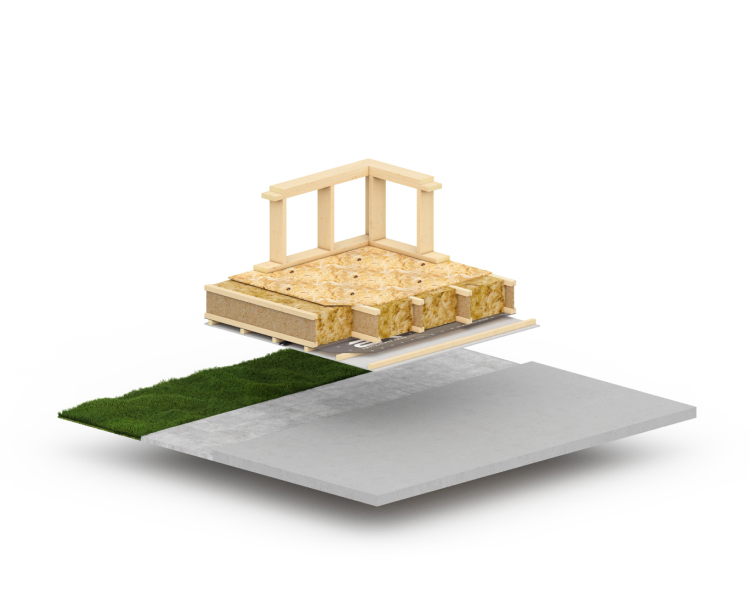

Ceiling cross-section

Steico Joist 300

External Wall U=0,132 W/m²K

Thermal Protection

U = 0,13 W/m²K

Heating from both sides: no requirements

thermalProtection
scale_img

Excellent

Insufficient

Moisture Resistance

No condensation

moistureResistance
scale_img

Excellent

Insufficient

Heat Protection

Temperature amplitude damping: 20

Phase shift: 12,8h

Internal heat capacity: 31 kJ/m²K

heatProtection
scale_img

Excellent

Insufficient

300
400
Details
300
400
300
1.GK Board 12.5 mm
2.Bar 45x45 mm / 40 cm
3.Vapor Barrier
4.STEICOzell insulation 300 mm
5.STEICOjoist 60x300 mm
6.OSB/3 Board 22 mm
